Pneumatic Actuated Valves
WANVALVE Pneumatic Actuator Valves Driving Industrial-Grade Automation Closer to You.
What Will Pneumatic Actuated Valves Bring You?
Pneumatic Actuated Valves are powered by compressed air. Compared with manual, electric or hydraulic valves, pneumatic valves can fully bring you：
- Open or close within 0.1–1 s. Compressed air is always on tap and immune to power-grid fluctuations
- Only two air lines are needed for installation, and annual running costs stay below USD 10 per valve.
- In the event of air failure, spring-return action achieves SIL2-rated emergency shut-off in 1–3 s, delivering overall greater safety and reliability.
Pneumatic Actuated Valve Series

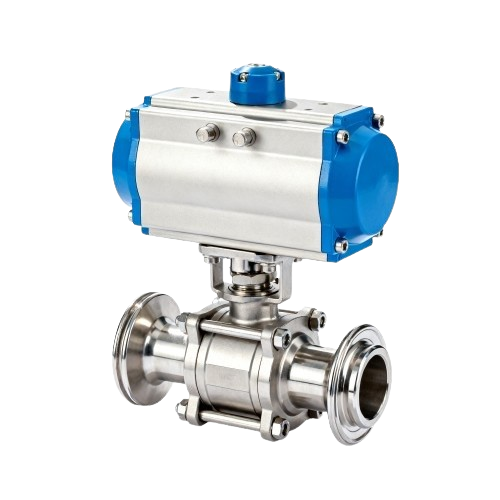

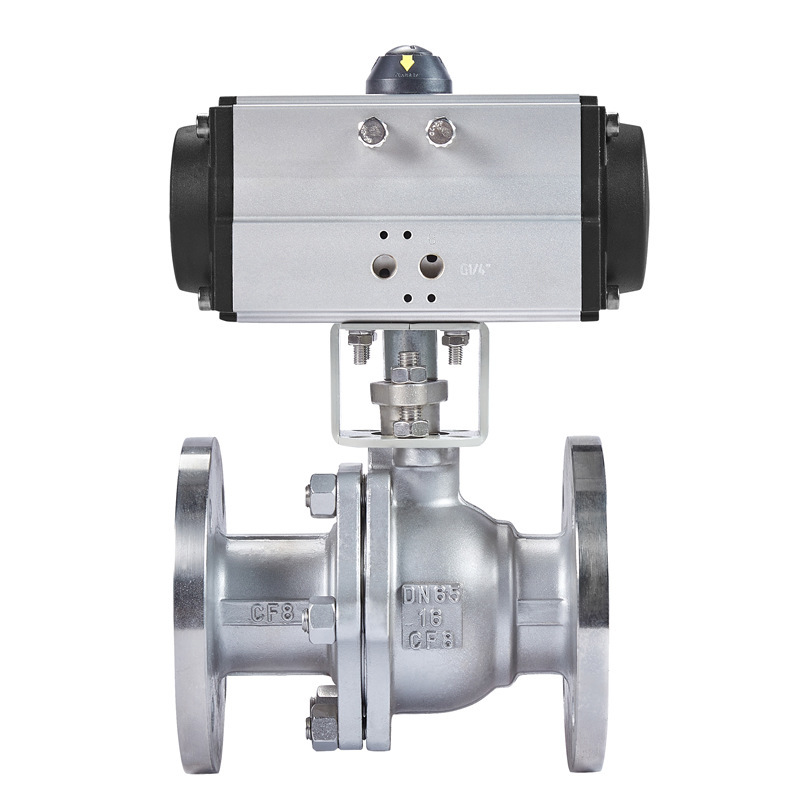

Pneumatic Ball Valves
Our pneumatic ball valves, powered by advanced pneumatic actuators, deliver fast switching, superior explosion-proof safety, and reliable sealing. With a wide selection of models, we provide the perfect solution to meet your diverse application needs.

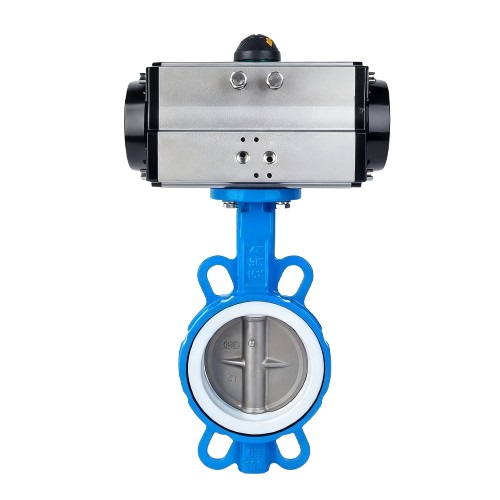

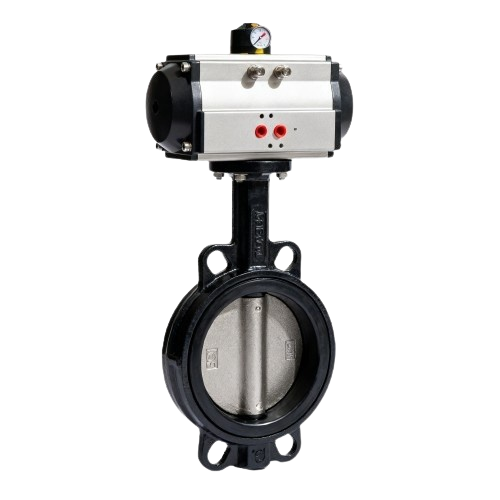

Pneumatic Butterfly Valves
Pneumatic butterfly valves feature rapid response, fast shutoff, and low maintenance costs, making them a cost-effective choice for low-pressure applications.
What Pneumatic Actuated Valves Do In Industries?

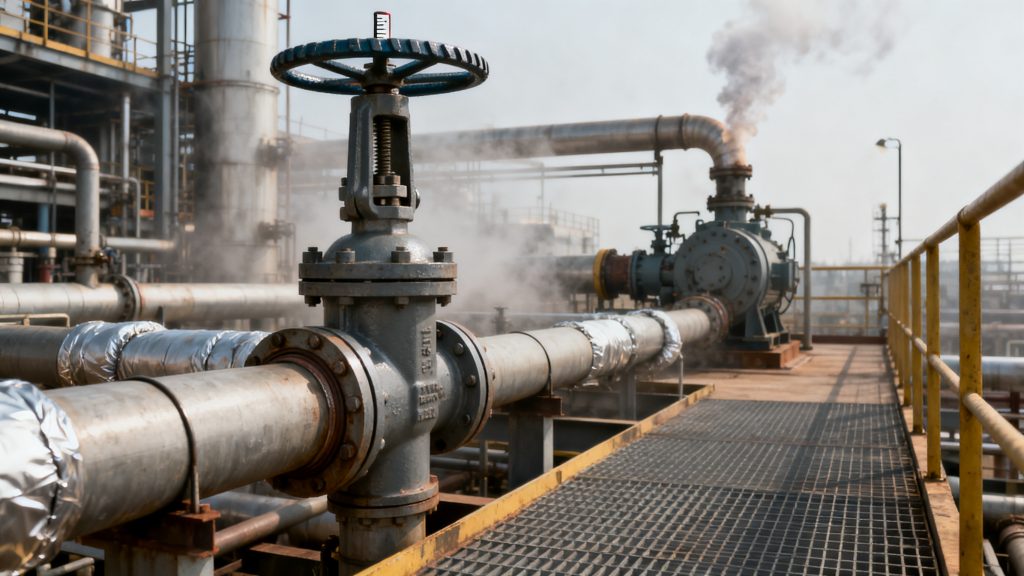

Chemical
In the chemical industry, pneumatic ball valves are the ideal choice. Designed with explosion-proof safety, they ensure reliable sealing and rapid operation, delivering both efficiency and safety in every process.
Food & Beverage
The ideal choice for food and beverage applications — pneumatic ball valves and butterfly valves powered by clean air, with sanitary stainless steel design for reliable sealing and uncompromising hygiene.

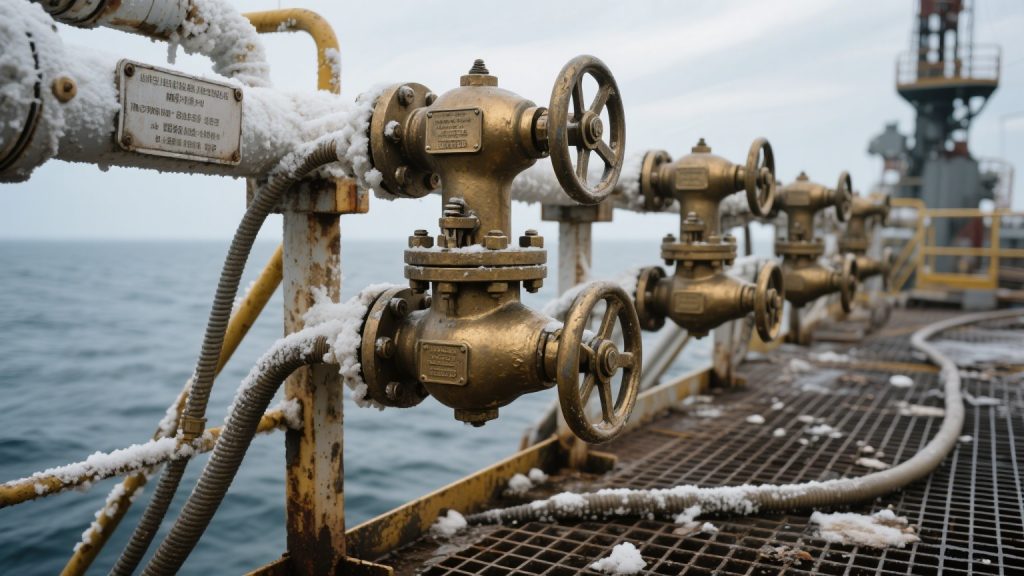

Oil & Gas

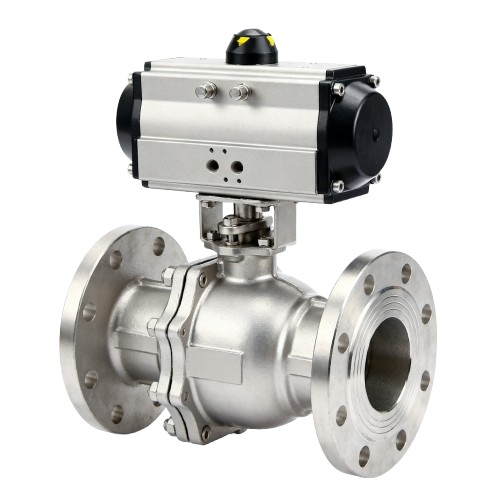

In the oil and gas industry, safety is paramount. Pneumatic Explosion-proof Ball Valves deliver explosion-proof design, dependable sealing, and rapid shut-off to safeguard critical operations.
Automated Manufacturing

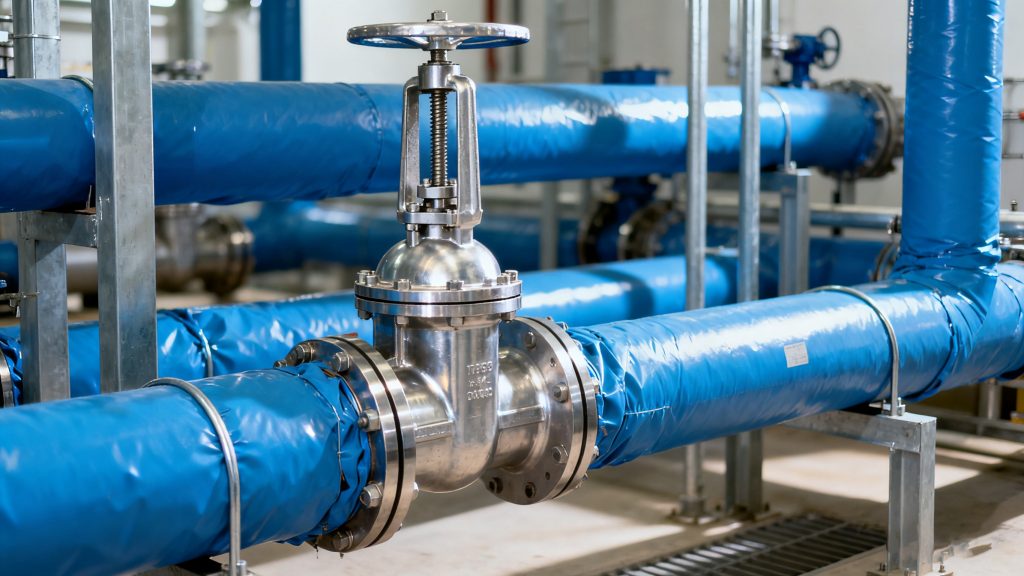

In automated production lines, such as water treatment and HVAC systems, pneumatic butterfly valves provide fast large-diameter flow control at lower cost. Simple, lightweight, and easy to install, they are ideal for efficient fluid management.
How to Choose A Best Pneumatic Valve for Your System？
At WANVALVE, customer requirements always come first. Pneumatic actuated valves are widely applied across industries and can be tailored with features such as explosion-proof design, enhanced sealing, or plastic construction. If you are unsure which valve best suits your application, WANVALVE’s strong technical support team is ready to provide you with professional solutions.
Relational Guide
What is a pneumatic actuated valve?
It is a valve driven by compressed air, enabling fast opening, closing, or flow control.
How fast can a pneumatic valve operate?
Pneumatic valves usually open or close within 1–5 seconds, making them much faster than electric valves.
Are pneumatic valves suitable for large-diameter pipelines?
Yes. Especially pneumatic butterfly valves, which are lightweight, cost-effective, and ideal for large flow applications.
What air supply is required?
Generally 4–8 bar of clean compressed air is needed for stable performance. It is recommended to start with an air supply pressure of 5 kg. The larger the cylinder, the higher the pressure required for start-up.
What materials are pneumatic valves available in? Are there explosion-proof or high-temperature options?
They can be made of PVC, stainless steel (SS304/SS316), cast iron, or cast steel. Explosion-proof versions and optional accessories are available. High-temperature resistance depends on sealing materials—EPDM (-40~100℃) and PTFE (-30~180℃)—with corrosion-resistant options also provided.
What support does WANVALVE provide?
We offer professional selection guidance, customized solutions, technical support, and reliable after-sales service.
