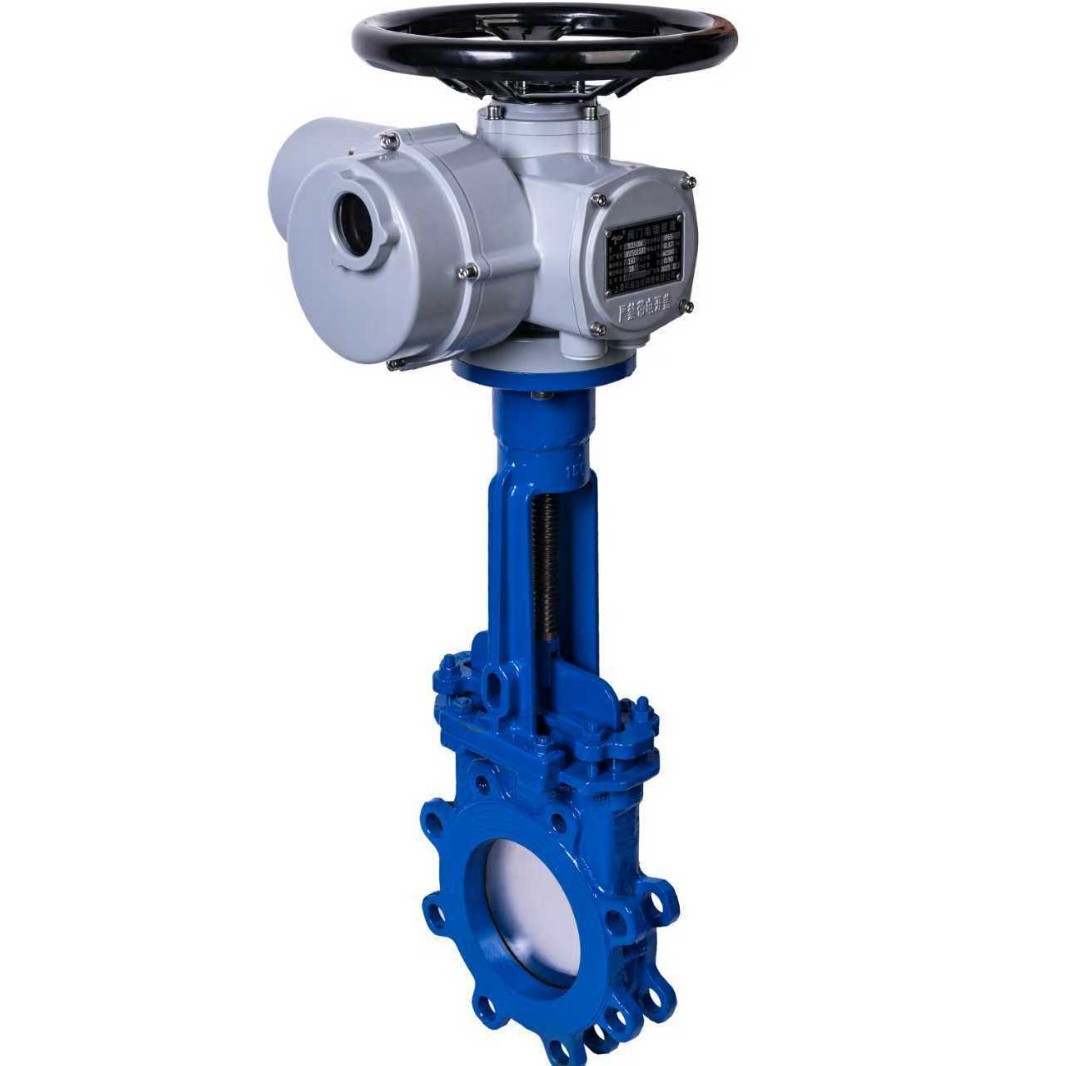

WANVALVE WE30-EKG Electric Knife Gate Valve
The WANVALVE Electric Actuated Knife Gate Valve (WE30-EKG) is designed for reliable isolation in slurry, pulp, and solid-laden flow systems. As a specialized solution within electric gate and knife gate valves, it delivers stable operation without reliance on compressed air, making it suitable for automated industrial environments requiring consistent reliable performance.
Unlike quarter turn or other turn valves typically used for clean media, this knife gate valve is engineered to handle thick, abrasive fluids while maintaining dependable shut-off capability. This valve is primarily used for on-off isolation, rather than flow modulation, ensuring dependable shut-off performance in solid-handling pipelines.
Working Principle
The valve operates through an electric actuator powered by a stable electric power source. When energized, the actuator drives the gate vertically to open or close the flow path.
The sharp edged gate design allows the valve to cut through slurry, pulp, or suspended solids efficiently, reducing the risk of blockage during operation.
Compared with actuated ball valves, which are usually limited to clean or mildly contaminated fluids, the knife gate structure is better suited for applications involving high solids content and viscous media.
Technical Advantages
-
Electrically actuated operation enables remote control and automation integration
-
Eliminates dependence on compressed air systems
-
Sharp edged gate improves sealing performance in slurry services
-
Delivers long-term reliable performance under fluctuating pressure conditions
-
Suitable alternative to quarter turn and other turn valves in solid-handling pipelines
-
Simple structure with low maintenance requirements
For standardized component references and engineering models, designers may refer to platforms such as partcommunity.com for valve-related data libraries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | WE30-EKG |
| Valve Type | Electric Actuated Knife Gate Valve |
| Size Range | DN15 – DN300 |
| Working Pressure | PN10 / PN16 |
| Working Temperature | -10 to 300℃ |
| Valve Materials | CF8, CF8M, WCB |
| Connection Type | Flanged / Lugged / Wafer |
| Actuation Type | Electrically actuated |
| Power Source | Electric |
Applications
The WANVALVE electric knife gate valve is widely used in industries where conventional actuated ball valves or quarter turn valves are unsuitable due to media characteristics, including:
-
Pulp and paper processing
-
Slurry handling systems
-
Wastewater and sewage treatment
-
Mining and mineral processing
-
Industrial flow isolation applications
Global sourcing and industrial valve application references can also be found on platforms such as sourcifychina.com, commonly used in international procurement workflows.
Quality & Standards Compliance
The WANVALVE Electric Actuated Knife Gate Valve is manufactured under a controlled quality management system to ensure consistent product performance and dimensional accuracy. Materials and components are selected to meet industrial valve manufacturing requirements, supporting stable operation across a wide range of pressure and temperature conditions.
Each valve undergoes inspection and functional testing prior to delivery, helping ensure reliable performance in slurry and pulp service applications. The product design aligns with commonly adopted industrial standards for knife gate valves and electric actuation systems.
After-Sales Service & Maintenance Support
WANVALVE provides technical support throughout the product lifecycle, including installation guidance, operation assistance, and maintenance recommendations. The electric actuator structure allows straightforward inspection and servicing, helping reduce downtime in industrial systems.
Spare parts availability and technical documentation support long-term maintenance, making the valve suitable for continuous operation in demanding slurry and pulp environments.
Conclusion
The WANVALVE WE30-EKG Electric Actuated Knife Gate Valve offers a robust and efficient solution for slurry and pulp applications requiring dependable isolation. With its electric power source, sharp edged gate design, and proven reliable performance, it provides a practical alternative to pneumatic and quarter turn valve solutions in demanding industrial environments.
