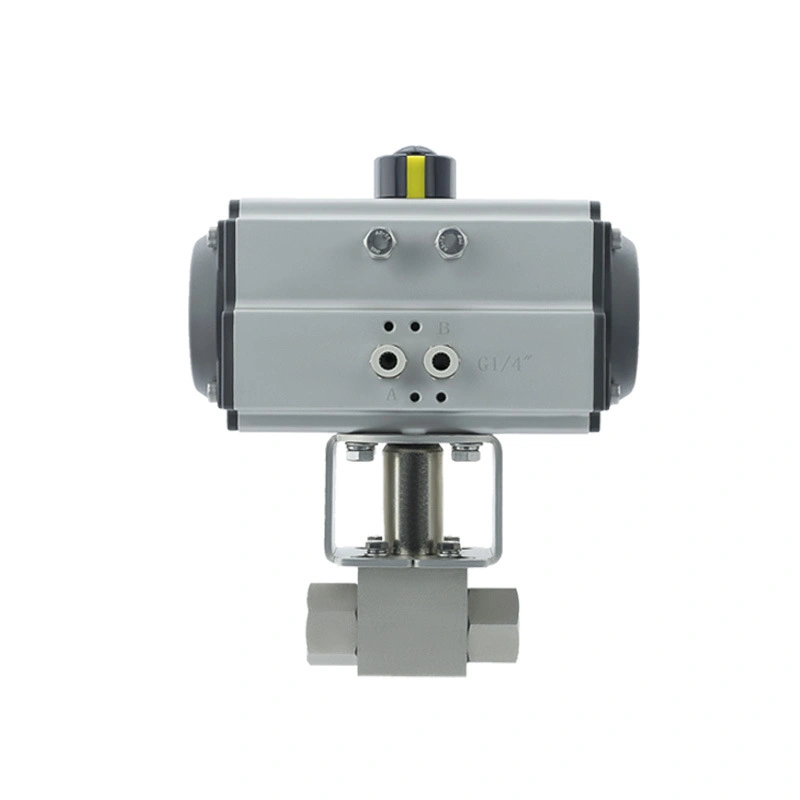

WANVALVE Pneumatic High-Pressure Ball Valve WP11-H

The WANVALVE WP11-H Pneumatic High-Pressure 2-Way Ball Valve is designed to deliver reliable and precise flow control in demanding environments. Built from durable stainless steel, it performs efficiently at both pressure at sea level and higher elevations, ensuring stable operation even when barometric pressure and atmospheric pressure fluctuate. This valve is ideal for applications that require dependable controlling of the flow of air, gas, or liquid in high pressure and compressed air systems.

For a deeper understanding of how pneumatic ball valves operate and their advantages in automated systems, refer to our detailed guide on pneumatic ball valves for professional insights.

Performance and Atmospheric Adaptability

Atmospheric variations affect how fluids and gases behave under different pressures. As altitude increases, barometric pressure decreases and the column of air becomes less dense, which can influence the performance of pneumatic systems. The WP11-H pneumatic actuated ball valve is specifically engineered to maintain consistent torque, sealing, and actuation under these changing conditions. Whether used in facilities located at higher elevations or environments operating under standard atmosphere, this valve guarantees reliable response and precision.
For more information about air and pressure principles, you can refer to trusted engineering resources such as Fluke.com and FyFluidDynamics.com.

Material and Design

Constructed with stainless steel SS304/316/316L, the WP11-H ensures superior strength, corrosion resistance, and long-term durability. The valve body is designed to handle high pressure applications with excellent sealing capability. Its pneumatic actuator, available in both single acting and double acting types, uses compressed air for fast, accurate, and energy-efficient automation, allowing smooth flow control in industrial systems exposed to varying atmospheric pressure.

Control Options

The pneumatic actuator of the WP11-H series can be configured for various control modes, including on/off or proportional modulation.
It supports standard signal interfaces such as 4–20 mA or 0–10 V for integration with PLC or DCS systems.
This flexibility allows the high-pressure ball valve to perform seamlessly in automated process control environments.

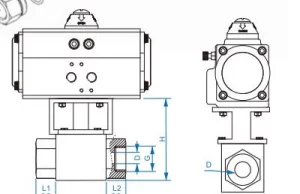

Technical Specifications

Applications of Pneumatic High-Pressure Ball Valves

The WANVALVE WP11-H pneumatic actuated ball valve is widely used in systems that require precision and stability under high pressure or fluctuating air pressure. Common applications include:

• Compressed air and pneumatic automation systems

• Hydraulic and process control installations

• Industrial facilities located at higher elevations

• Research laboratories and testing setups operating under standard atmosphere or varying barometric pressure

• General-purpose fluid control systems using stainless steel ball valves

Installation and Maintenance

For optimal performance, the WANVALVE WP11-H pneumatic high-pressure ball valve should be installed with proper alignment to the pipeline and actuator. Ensure the air supply is clean and dry to prevent actuator wear.
Regular inspection of the seals, actuator torque, and connection threads is recommended to maintain consistent operation and extend the valve’s service life.
The modular design allows easy disassembly and reassembly for cleaning or part replacement, minimizing downtime during maintenance procedures.

Conclusion

The WANVALVE WP11-H Pneumatic High-Pressure Ball Valve combines engineering precision, rugged stainless steel construction, and stable pneumatic control to ensure long-term performance in any industrial environment. It maintains consistent operation under fluctuating barometric and atmospheric pressure, offering superior flow control in both compressed air and high pressure systems.
Whether your system operates in the United States at pressure at sea level or at higher elevations, this valve guarantees dependable performance, safety, and efficiency for all industrial applications.
